Selecting the right air duct pipe is key to improving HVAC performance, saving energy, and reducing long-term costs. Air duct pipes act like a circulatory system in HVAC networks, sending conditioned air through homes and businesses. With numerous materials, sizes, and configurations available, making an informed choice can be overwhelming. This comprehensive guide explores core basics of air duct pipes, common materials and types, and practical steps for sizing ducts to meet specific system requirements. By understanding these elements, you can ensure efficient airflow, reduce energy consumption, and minimize maintenance issues.
According to the U.S. Department of Energy, properly designed and installed duct systems can improve HVAC efficiency by up to 20%, leading to significant utility savings. Whether you are retrofitting an existing system or designing a new installation, this guide provides evidence-based recommendations to help you select the optimal air duct pipe for your needs.
Core Basics of Air Duct Pipes
What Are Air Duct Pipes? Core Role in HVAC Systems
Air duct pipes are hollow conduits that transport air from HVAC equipment to various rooms and zones within a building. They form an integral part of the air distribution system, connecting supply vents, return vents, and exhaust pathways. The primary function of air duct pipes is to deliver conditioned air at the correct temperature, humidity, and velocity to maintain indoor comfort and air quality. In residential settings, duct pipes are typically made of sheet metal or flexible materials, while commercial and industrial applications often use rigid metal, plastic, or composite pipes for durability and performance.
The core role of air duct pipes extends beyond mere air transport; they influence system efficiency, noise levels, and indoor air quality. Leaky or poorly sized ducts can lead to energy waste, uneven temperatures, and increased allergen circulation. Properly designed duct pipes minimize pressure drop, reduce fan energy consumption, and ensure uniform air distribution. Understanding the basics of air duct pipes is the first step toward making informed selection decisions that enhance overall HVAC performance.
Why Proper Duct Selection Impacts Performance & Long-Term Costs
Choosing the right air duct pipe material and size directly affects HVAC system performance and operational costs. Inefficient duct systems can account for up to 30% of energy loss in buildings. For example, flexible ducts, while easy to install, may have higher friction loss compared to rigid metal pipes, leading to increased fan energy use. Similarly, undersized ducts create high static pressure, forcing the system to work harder and reducing lifespan.
Long-term costs are also influenced by material durability and maintenance requirements. Galvanized steel ducts offer longevity but may corrode in humid environments, while plastic ducts like PVC or PP provide corrosion resistance at a lower cost. Improper selection can result in frequent repairs, higher energy bills, and premature system failure. By prioritizing proper duct selection, building owners can achieve optimal performance, lower lifecycle costs, and improved occupant comfort.
Key Factors to Guide Your Air Duct Selection Decision
Several key factors should guide your air duct pipe selection process. First, consider the application: residential, commercial, or industrial, as each has unique requirements for airflow, pressure, and environmental conditions. Second, evaluate material properties such as corrosion resistance, fire rating, and thermal conductivity. Third, assess space constraints and installation complexity, which may favor flexible or rigid pipes. Fourth, factor in budget constraints, balancing initial costs with long-term savings. For detailed duct construction standards, refer to SMACNA guidelines.
The following table summarizes key factors for air duct pipe selection:
| Factor | Description | Impact on Selection |
|---|---|---|
| Application | Residential, commercial, industrial | Determines material and size requirements |
| Material Properties | Corrosion resistance, fire rating, weight | Affects durability and compliance with codes |
| Space Constraints | Ceiling height, duct routing | Influences choice between rigid and flexible pipes |
| Budget | Initial cost vs. lifecycle cost | Guides material selection (e.g., metal vs. plastic) |
| Airflow Requirements | CFM needs, static pressure | Dictates duct sizing and configuration |
By systematically evaluating these factors, you can narrow down options and select the most suitable air duct pipe for your project.
Common Air Duct Pipe Materials & Types Explained
Rigid Metal Ducts: Galvanized Steel, Aluminum & Stainless Steel
Rigid metal ducts are the most common type used in HVAC systems due to their durability, fire resistance, and smooth interior surfaces that minimize airflow resistance. Galvanized steel ducts are cost-effective and widely used in residential and commercial applications. They provide good structural integrity but may corrode over time in high-humidity environments. According to ASHRAE standards, proper material selection is critical for maintaining indoor air quality and system efficiency.
Aluminum ducts are lighter and more corrosion-resistant, making them ideal for coastal areas or food processing facilities where moisture is prevalent. Stainless steel ducts offer the highest resistance to corrosion and high temperatures, suitable for industrial exhaust systems or cleanrooms. The choice among these metals depends on specific needs: galvanized steel for general use, aluminum for weight-sensitive applications, and stainless steel for harsh conditions.
Flexible Ducts: Overview & Ideal Application Scenarios
Flexible ducts, often made of plastic or metalized film with a wire helix core, are easy to install in tight spaces and around obstacles. They are commonly used for short runs from rigid ducts to supply vents, particularly in residential retrofits or where rigid ducts are impractical. However, flexible ducts have higher friction loss compared to rigid pipes, which can increase energy consumption if not properly sized and supported.
Ideal application scenarios for flexible ducts include connecting air handlers to ceiling diffusers, temporary installations, or zones with limited access. To maximize performance, ensure flexible ducts are fully extended without kinks, supported at regular intervals, and insulated in unconditioned spaces.

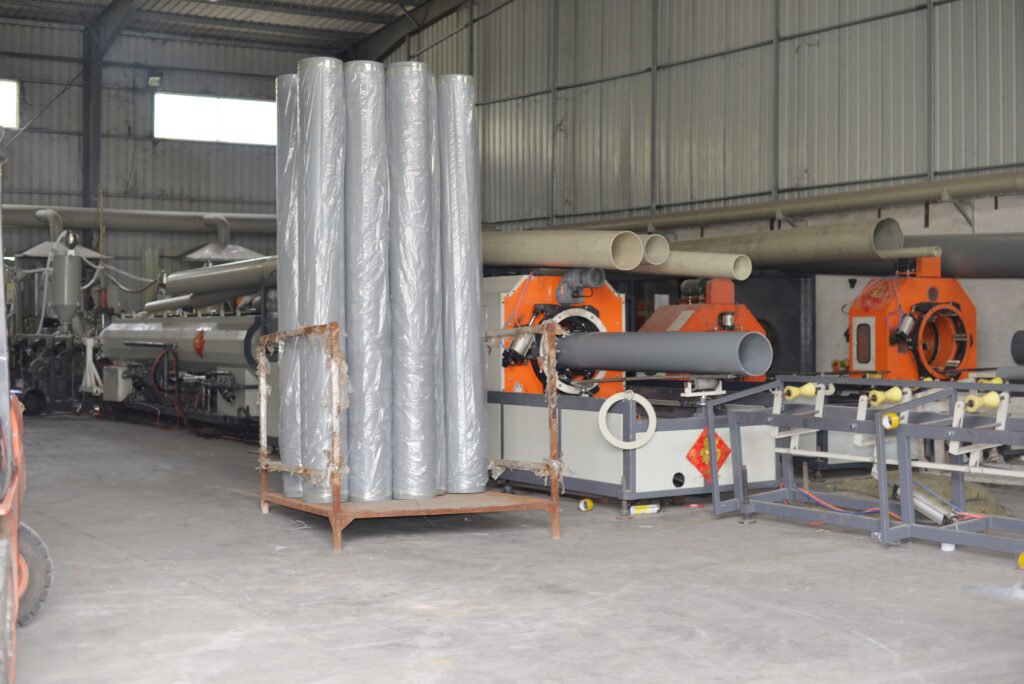

Plastic & Composite Ducts: PVC, PP, FRP & Fiberglass Options
Plastic and composite ducts offer lightweight, corrosion-resistant alternatives to metal pipes, particularly in chemically aggressive environments. PVC (polyvinyl chloride) ducts are affordable and resistant to acids and alkalis, making them suitable for laboratory exhaust or chemical processing. PP (polypropylene) ducts provide broader chemical resistance and higher temperature tolerance, ideal for industrial applications. FRP (fiberglass reinforced plastic) ducts combine strength with corrosion resistance, often used in wastewater treatment or marine environments.
These materials are increasingly popular for their longevity and low maintenance. However, they may have lower fire ratings compared to metal ducts, so compliance with local codes is essential. For specialized plastic duct solutions, explore options at https://plastic-duct.com/.
How to Choose the Right Duct Size for Your System
Calculate Room Airflow Requirements for Proper Duct Sizing
Proper duct sizing begins with calculating the airflow requirements for each room, measured in cubic feet per minute (CFM). CFM needs depend on room size, occupancy, insulation levels, and climate. The Air Conditioning Contractors of America (ACCA) provides Manual J load calculation procedures for accurate sizing. For example, a 200-square-foot room may require 200 CFM for cooling, but this varies based on factors like window orientation and ceiling height.
Use online calculators or consult HVAC professionals to determine exact CFM values. Oversizing ducts can lead to low air velocity and poor distribution, while undersizing increases static pressure and energy use.
Match Duct Size to Your HVAC Unit & Space Needs
Duct size must match the capacity of your HVAC unit and the physical constraints of your space. For instance, a high-capacity air handler requires larger main ducts to handle increased airflow without excessive pressure drop. Measure available space for duct routing, considering ceiling cavities, wall thickness, and obstructions. Round ducts are more efficient but may require more depth, while rectangular ducts fit shallow spaces but have higher friction loss.
Balancing unit capacity with space needs ensures efficient airflow without compromising structural integrity. In commercial buildings, duct sizing often involves complex layouts with multiple zones, requiring professional design to avoid imbalances.
Account for Static Pressure & Uniform Air Distribution
Static pressure is the resistance to airflow within the duct system, measured in inches of water gauge (in. w.g.). High static pressure can strain fans and reduce efficiency. According to the Department of Energy, optimizing static pressure can improve system efficiency by 10-15%. Account for static pressure when sizing ducts by selecting dimensions that minimize friction loss. Use duct sizing methods like the equal friction or static regain methods to achieve uniform air distribution.
Uniform distribution prevents hot or cold spots and ensures consistent comfort. Incorporate balancing dampers and proper vent placement to adjust airflow as needed. Regular testing and maintenance help sustain optimal performance over time.
