Proper air duct pipe installation is essential for efficient HVAC system performance, energy savings, and indoor air quality. Poorly installed ducts can lead to air leaks, uneven temperatures, and increased utility costs. According to the U.S. Department of Energy, duct leakage can account for up to 30% of energy loss in typical homes. This complete guide gives a step-by-step plan for air duct pipe installation. It covers prep, install methods, and post-install tests. This helps ensure the system works well.
Whether you are a DIY enthusiast or you work with HVAC contractors, these best practices can help. They will help you seal and balance your duct system. Proper air duct pipe installation not only improves comfort but also extends the lifespan of your HVAC equipment.
Pre-Installation Preparation & Planning
Measure, Cut & Prep Duct Sections for Installation
Before beginning your air duct pipe installation, accurate measurement is critical. Use a tape measure to determine the length and diameter of each duct section needed for your layout. For round ducts, measure the diameter; for rectangular ducts, measure width and height. Always add 2-3 inches to account for overlap at joints.
Cut duct sections using appropriate tools based on material:
- Metal ducts: Use tin snips or aviation shears for straight cuts
- Plastic ducts: Use a fine-tooth saw or utility knife
- Flexible ducts: Cut with a utility knife, ensuring a square edge
Deburr all cut edges to prevent injury and ensure proper sealing. Label each section according to your layout plan to streamline assembly. The following table summarizes common duct sizes and applications:
| Duct Type | Common Sizes | Best Applications |
|---|---|---|
| Round Metal | 4″, 6″, 8″, 10″, 12″ diameters | Main supply trunks, high airflow areas |
| Rectangular Metal | 4×10, 6×10, 8×12, 10×14 inches | Ceiling cavities, space-constrained areas |
| Flexible Duct | 4″, 6″, 8″, 10″ diameters | Short runs to vents, tight spaces |
| Plastic (PP/PVC) | 4″ to 24″ diameters | Corrosive environments, chemical exhaust |
Gather Essential Tools & Materials for Duct Installation
Having the right tools and materials ensures efficient air duct pipe installation. Essential tools include tape measures, tin snips, screwdrivers, caulk guns, and drills. Safety equipment such as gloves, safety glasses, and dust masks is also necessary.
Key materials include:
- Duct sections (metal, flexible, or plastic)
- Duct tape or mastic sealant
- Support brackets and hangers
- Insulation material (fiberglass or foam)
- Fasteners (screws, rivets, zip ties)

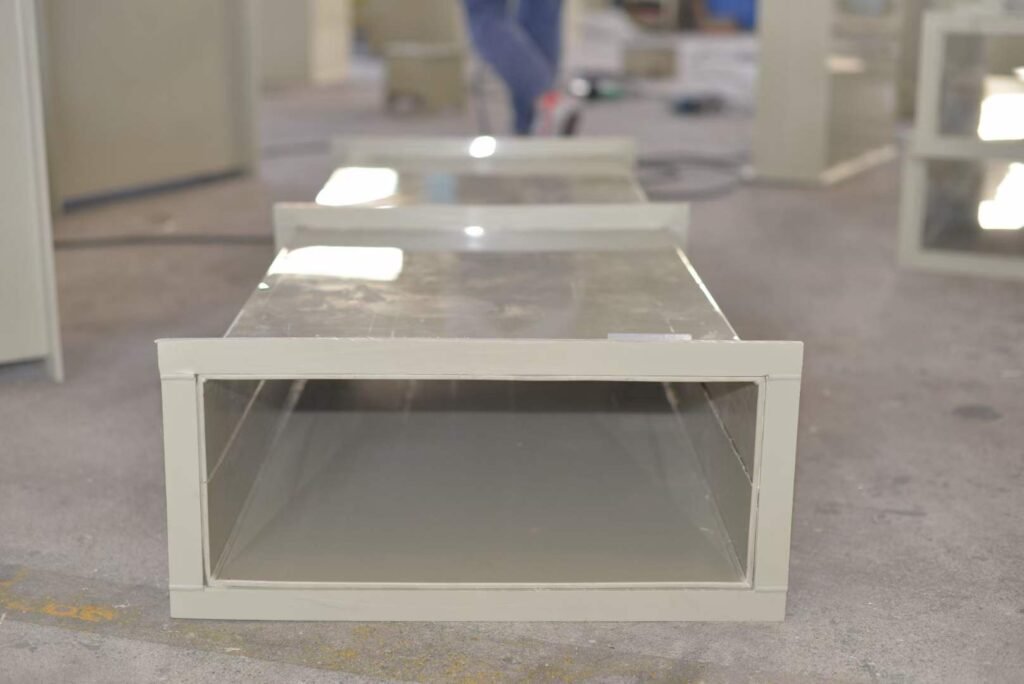

For specialized applications, consider corrosion-resistant plastic ducts from https://plastic-duct.com/ for long-term durability in harsh environments.
Map Duct Routes & Confirm Placement & Sizing
Create a detailed layout plan before installation. Map duct routes from the air handler to each supply and return vent, minimizing bends and lengths to reduce pressure drop. Ensure adequate clearance from obstacles like plumbing, electrical wiring, and structural members.
Verify that duct sizing matches your HVAC system’s airflow requirements. Undersized ducts create high static pressure, while oversized ducts reduce air velocity and distribution efficiency. Refer to ACCA Manual D for proper sizing calculations. Confirm placement meets local building codes and accessibility requirements for future maintenance.
Step-by-Step Air Duct Pipe Installation Process
Assemble Duct Sections & Seal Joints to Prevent Air Leaks
Begin assembling your air duct pipe installation by connecting duct sections. For round metal ducts, use slip joints or drive cleats, ensuring the male end points downstream. For rectangular ducts, align flanges and secure with screws or rivets spaced 6-8 inches apart.
Seal all joints using mastic sealant or aluminum foil tape (not cloth duct tape, which degrades). Apply sealant generously to both interior and exterior of joints for maximum protection against air leaks. The following table compares sealing methods:
| Sealing Method | Pros | Cons | Best For |
|---|---|---|---|
| Mastic Sealant | Excellent adhesion, durable | Messy application, longer dry time | All metal duct joints |
| Foil Tape | Easy application, fast | Less durable than mastic | Small gaps, repairs |
| Duct Mesh + Mastic | Reinforced, very strong | More complex application | Large gaps, high-pressure systems |
Secure Ductwork With Proper Hangers & Supports
Proper support is critical for maintaining air duct pipe installation integrity. Round ducts should be supported every 5-10 feet using strap hangers or clevis hangers. Rectangular ducts require supports every 3-6 feet, depending on size and pressure class.
Ensure supports are level and securely attached to structural members. Avoid over-tightening hangers, which can deform ducts. For heavy duct sections, use additional supports near joints and fittings. Proper support prevents sagging, reduces vibration noise, and maintains seal integrity.
Install Duct Insulation to Prevent Heat Loss & Condensation
Insulation is essential for air duct pipe installation in unconditioned spaces like attics or crawlspaces. Apply insulation with a minimum R-value of 6 (R-8 recommended for colder climates). Wrap insulation around ducts completely, securing with foil tape or wire ties.
For plastic ducts, ensure insulation material is compatible and won’t degrade the duct surface. In humid environments, consider vapor barriers to prevent condensation inside ducts. Proper insulation reduces energy loss, prevents condensation, and minimizes temperature fluctuations.
Post-Installation Testing & Quality Checks
Air Leakage Test to Verify Proper Sealing Performance
After completing your air duct pipe installation, test for air leaks using a duct blower or smoke pencil. A duct blower test measures total leakage as a percentage of system airflow. According to SMACNA standards, residential systems should have leakage rates below 6% of design airflow.
For DIY testing, seal all vents except one, then use a smoke pencil or incense stick near joints while the system runs. Visible smoke movement indicates leaks requiring additional sealing. Document test results for future reference and warranty purposes.
Airflow Balancing to Ensure Uniform Air Distribution
Airflow balancing ensures your air duct pipe installation delivers consistent comfort throughout the building. Start with all dampers fully open, then measure airflow at each supply vent using an anemometer or airflow hood. Adjust dampers to achieve balanced airflow within 10% of design values.
The following table shows typical airflow targets by room size:
| Room Size | Recommended Airflow (CFM) |
|---|---|
| Small Bedroom (100-150 sq ft) | 50-75 CFM |
| Medium Bedroom (150-200 sq ft) | 75-100 CFM |
| Living Room (200-300 sq ft) | 100-150 CFM |
| Kitchen (150-250 sq ft) | 100-125 CFM |
Final Inspection to Meet Code & Industry Best Practices
Conduct a final inspection of your air duct pipe installation to ensure compliance with local building codes and industry standards. Check that all joints are sealed, supports are secure, and insulation is properly installed. Verify that ductwork meets clearances from combustible materials and that access panels are available for maintenance.
Document the installation with photos and notes for future reference. Schedule professional inspection if required by local codes, particularly for commercial installations. Proper documentation helps with warranty claims and future troubleshooting.
