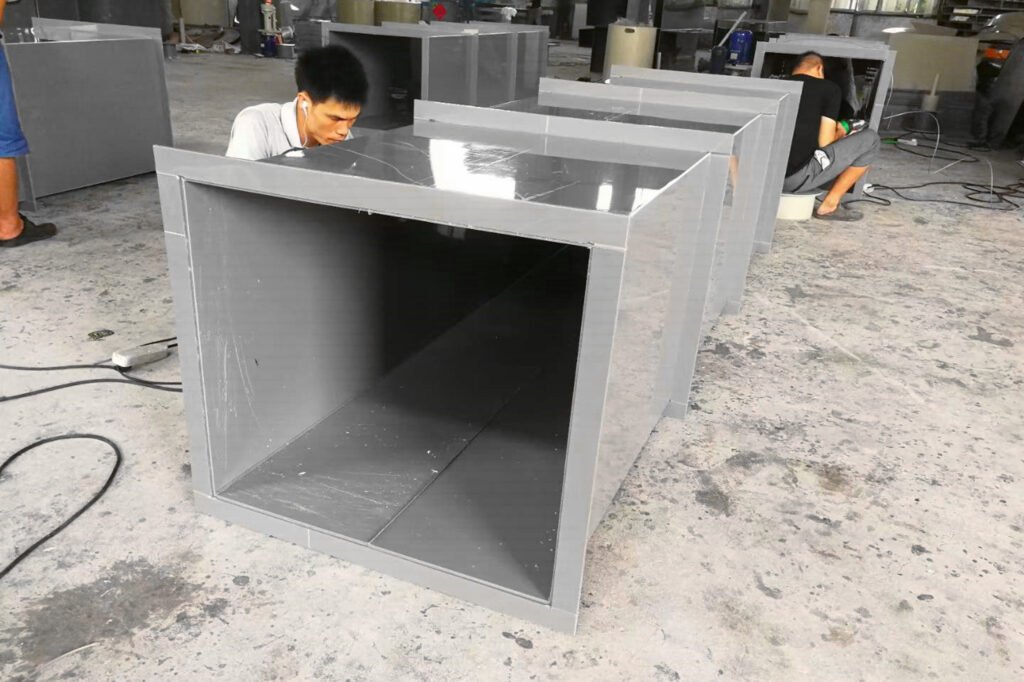

Every building that relies on mechanical ventilation — from semiconductor cleanrooms and pharmaceutical labs to commercial offices and underground parking structures — depends on a ductwork system that moves air quietly, efficiently, and reliably. Yet air duct design is one of the most underestimated disciplines in building engineering. A poorly designed duct system wastes fan energy, creates uncomfortable noise levels, delivers uneven airflow to occupied zones, and fails to maintain the temperature and humidity conditions that the HVAC system was specified to achieve. The consequences extend beyond comfort: in industrial facilities handling corrosive exhaust or hazardous fumes, a flawed air duct design can compromise containment, violate environmental regulations, and endanger worker health.
Effective air duct design sits at the intersection of three engineering disciplines. Fluid dynamics governs how air moves through the duct network — its velocity, volume, pressure drop, and the turbulence patterns created by bends, transitions, and branch connections. Thermodynamics determines how much heat is gained or lost through the duct walls, how insulation must be selected to control condensation, and how thermal expansion affects material selection and joint design. Acoustic engineering addresses the noise generated by fans, turbulence, and airflow interactions, and the strategies available to attenuate that noise before it reaches occupied spaces. Mastering all three disciplines is essential for any engineer responsible for air duct design in modern building and industrial applications. This guide provides a comprehensive reference across all three domains, with practical calculations, material comparisons, and design strategies drawn from leading industry standards.
Fluid Dynamics in Air Duct Design
Airflow Velocity, Volume, and Pressure Drop Calculations
The foundation of air duct design is the relationship between airflow volume, velocity, and pressure drop. Airflow volume (Q) is measured in cubic meters per second (m³/s) or cubic feet per minute (CFM) and represents the total quantity of air the system must deliver. Airflow velocity (v) is the speed at which air travels through a given duct cross-section, calculated as v = Q / A, where A is the duct’s internal cross-sectional area. Pressure drop (ΔP) is the loss of static pressure as air frictionally interacts with the duct interior surface, and it directly determines the fan energy required to maintain the designed airflow.
In air duct design, velocity must be carefully controlled. Too high, and the system generates excessive noise, erodes duct surfaces (particularly in systems carrying abrasive particles), and creates uncomfortable drafts at diffusers. Too low, and contaminants may settle inside the duct, duct sizes become impractically large, and construction costs escalate. The ASHRAE Fundamentals Handbook recommends maximum velocities of 4–6 m/s for main supply ducts, 3–5 m/s for branch ducts, and 2–3 m/s for ducts near occupied zones in comfort applications. Industrial exhaust systems may operate at higher velocities (10–20 m/s) to prevent particulate deposition, but these must be balanced against noise and pressure drop penalties. Pressure drop per unit length is calculated using the Darcy-Weisbach equation or equivalent friction charts, with typical values of 0.8–1.2 Pa/m for comfort ventilation and higher values for industrial applications. Accurate pressure drop calculation is critical in air duct design because it directly sizes the fan and determines the system’s total energy consumption over its operational life.
Duct Sizing Methods: Equal Friction, Velocity Reduction, and Static Regain
Three primary sizing methods dominate professional air duct design practice, each with distinct advantages suited to different system configurations. The equal friction method is the most widely used approach in commercial and industrial air duct design. It sizes all ducts — mains, branches, and sub-branches — to maintain the same friction loss per unit length (typically 0.8–1.2 Pa/m). This method is simple to apply, produces well-balanced systems, and is the default approach in most duct sizing software. Its limitation is that it does not account for velocity changes at branch takeoffs, which can result in slightly uneven pressure distribution in complex networks.
The velocity reduction method sizes ducts by progressively reducing air velocity from the fan discharge to the terminal outlets. Main ducts operate at high velocity (6–8 m/s), mid-level branches at moderate velocity (4–6 m/s), and final branches at low velocity (2–4 m/s). This method is intuitive and produces naturally balanced systems but can result in oversized ducts in long, simple runs. The static regain method sizes each gained from velocity reduction at a branch takeoff exactly offsets the friction loss in that section, maintaining nearly constant static pressure throughout the system. This method minimizes balancing damper requirements and optimizes fan energy but requires iterative calculation and is best suited to well-designed systems with careful air duct design software support. The following table compares these three methods:
| Sizing Method | Principle | Best Application | Complexity | Balancing Need |
|---|---|---|---|---|
| Equal Friction | Same Pa/m throughout | General commercial & industrial | Low | Moderate |
| Velocity Reduction | Progressive velocity decrease | Simple, short-run systems | Low | Low to moderate |
| Static Regain | Constant static pressure | Complex, energy-critical systems | High | Minimal |
Minimizing Turbulence at Bends, Transitions, and Branch Connections
Turbulence is the silent enemy of efficient air duct design. Every bend, size transition, and branch takeoff disrupts the smooth laminar airflow, creating eddy currents that increase pressure drop, generate noise, and reduce the effective delivery of conditioned air to its intended destination. The magnitude of turbulence-induced losses is quantified by equivalent length or loss coefficient (C) values, which express the local fitting loss as an equivalent length of straight duct or as a multiple of the velocity pressure.
In air duct design, minimizing turbulence begins with geometry. Bends should use a centerline radius of at least 1.5 times the duct width (ideally 2.0×) to reduce flow separation. Where space constraints force sharp turns, internal turning vanes — curved metal or plastic plates that guide air through the bend — reduce the loss coefficient by 50–70%. Size transitions should be gradual: a maximum included angle of 15° for expansions and 30° for contractions prevents flow separation at the duct wall. Branch connections should use 30°–45° entry angles rather than 90° tees, and the branch should enter the main duct at a swept radius rather than a sharp intersection. For industrial air duct design using corrosion-resistant materials such as PP or FRP, these geometric principles are even more critical because the smooth interior surface of plastic ducting already delivers lower baseline friction than corroded metal, meaning that poorly designed fittings represent a proportionally larger share of total system losses. Investing in proper fitting geometry during the air duct design phase pays dividends in reduced fan energy, lower noise, and more uniform airflow distribution throughout the system’s life.
Thermodynamic Principles in Duct System Design
Heat Gain and Heat Loss Through Duct Walls and Insulation Selection
Thermal performance is a critical dimension of air duct design that directly affects energy consumption, occupant comfort, and condensation risk. Uninsulated ducts running through unconditioned spaces — ceiling voids, mechanical rooms, rooftops, or underground tunnels — exchange heat with their surroundings, warming supply air in summer and cooling it in winter duct section so that the static pressure. The rate of heat transfer depends on the temperature differential between the air inside the duct and the surrounding environment, the thermal conductivity of the duct wall material, the duct surface area, and the airflow velocity (which affects the internal film coefficient). The overall heat transfer coefficient (U-value) is calculated by combining the internal convection resistance, duct wall conduction resistance, insulation conduction resistance, and external convection (or radiation) resistance.
In air duct design for conditioned supply systems, insulation serves two purposes: reducing thermal energy loss (which wastes cooling or heating capacity) and preventing surface condensation. Condensation occurs when the duct outer surface temperature drops below the dew point of the surrounding air — a common problem in humid climates or in spaces with high ambient moisture. The minimum insulation thickness required to prevent condensation is determined by calculating the outer surface temperature at the design condition and verifying that it remains above the dew point. For a typical supply duct carrying 13°C cooled air in a 35°C / 80% RH environment, fiberglass insulation of 25–50mm thickness with a vapor barrier is typically required. Material thermal conductivity values — 0.035 W/m·K for fiberglass, 0.025 W/m·K for polyurethane foam, and 0.040 W/m·K for mineral wool — directly influence the insulation thickness needed. Proper insulation specification during the air duct design phase prevents condensation damage, mold growth, and the costly remediation that follows.
Thermal Expansion, Condensation Control, and Material Temperature Limits

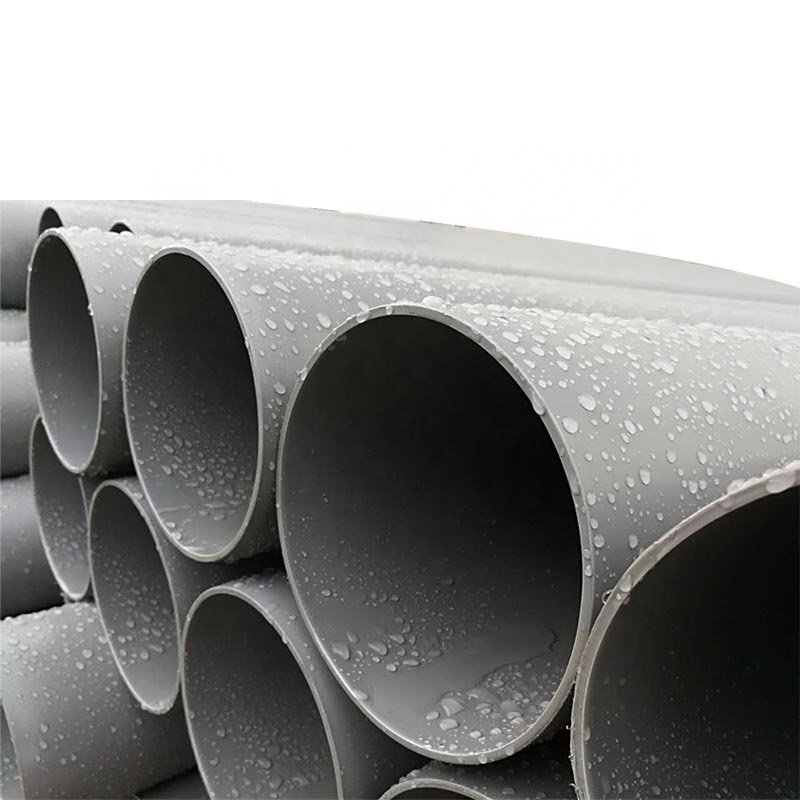

Different duct materials respond differently to temperature changes, and air duct design must account for thermal expansion to prevent joint failures, buckling, and structural damage. Metal ducts (galvanized steel, aluminum) have high coefficients of thermal expansion — approximately 12 × 10⁻⁶ /°C for steel and 23 × 10⁻⁶ /°C for aluminum — meaning a 30m steel duct run exposed to a 50°C temperature change will expand by approximately 18mm. Without expansion joints or flexible connectors, this movement concentrates stress at fixed points, potentially cracking flanges or pulling ducts from their supports. Plastic ducts such as PP and PVC from plastic-duct.com have higher coefficients of thermal expansion (approximately 100–150 × 10⁻⁶ /°C for polypropylene), requiring more generous expansion provisions — typically flexible connectors every 10–15m and expansion loops at direction changes.
Condensation control is equally critical in air duct design for cold-air systems. Internal condensation forms when the supply air temperature falls below the dew point of air trapped in annular spaces or when duct joints are imperfectly sealed, allowing humid ambient air to infiltrate and condense on the cold inner surface. This moisture accumulates, promotes microbial growth, degrades insulation, and eventually drips through ceiling tiles onto occupied spaces below. Prevention requires continuous vapor barriers on the insulation exterior, sealed duct joints, and — for systems operating below 10°C — double-wall duct construction with an air gap between inner and outer walls. Material temperature limits must also be respected: polypropylene ducts are rated to approximately 90°C continuous, PVC to 60°C, and galvanized steel to 300°C+. Selecting the right material for the operating temperature range is a fundamental decision in air duct design that affects both safety and longevity.
Energy Efficiency Optimization: Balancing Airflow Distribution and Load Requirements
Energy efficiency in air duct design is achieved not by minimizing duct size (which increases pressure drop and fan energy) but by optimizing the balance between duct sizing, insulation performance, leakage control, and system zoning. Fan energy typically accounts for 20–40% of total HVAC energy consumption in commercial buildings, and the duct system’s pressure drop is the primary determinant of fan power. Reducing duct system pressure drop by even 10% — through larger ducts, smoother fittings, lower velocities, or better sealing — can yield significant energy savings over the system’s 20–30 year life.
Duct leakage is a frequently overlooked energy waster in air duct design. Studies by ASHRAE and the SMACNA indicate that typical duct systems lose 10–25% of their conditioned air through leaks at joints, seams, and connections before it reaches the intended zone. This leakage represents pure waste: energy was consumed to condition air that never benefited the occupied space. Sealing ducts to SMACNA Class A or better (≤1% leakage at 750 Pa) reduces this waste dramatically. System zoning — dividing the ductwork into independently controlled sections matched to distinct load profiles — prevents over-conditioning of lightly loaded zones while ensuring adequate supply to heavily loaded areas. Variable air volume (VAV) systems, which modulate airflow to match real-time load, further optimize energy use by reducing fan speed during part-load conditions. Integrating these strategies during the air duct design phase, rather than retrofitting them later, ensures that the system operates at peak efficiency from day one.
Acoustic Engineering for Air Duct Systems
Noise Sources in Ductwork: Fan Noise, Turbulence, and Regenerated Sound
Noise management is an integral part of professional air duct design, particularly in environments where occupant comfort, speech intelligibility, or process sensitivity demands low background noise levels. Ductborne noise originates from three primary sources. Fan noise is generated at the fan itself and propagates downstream (and upstream) through the duct system. Fan noise spectra are characterized by broadband noise (from air turbulence at the impeller) and tonal noise (at blade-pass frequency and its harmonics). The sound power level of the fan is specified by the manufacturer and varies with fan type — centrifugal fans with airfoil blades are quieter than backward-inclined or forward-curved designs at equivalent duty points.
Turbulence-generated noise is created within the duct system itself as air passes through fittings, dampers, branch takeoffs, and transitions. This regenerated noise is proportional to the velocity pressure and the fitting’s dynamic loss coefficient, and it increases sharply at velocities above 7–8 m/s. In air duct design for noise-sensitive environments, keeping branch duct velocities below 5 m/s and main duct velocities below 6 m/s is a primary noise control strategy. Breakout noise occurs when sound generated inside the duct transmits through the duct wall into the surrounding space. Thin metal ducts are poor sound barriers, and breakout noise becomes significant when internal sound levels are high and duct runs pass through quiet occupied zones. Increasing duct wall thickness, wrapping ducts with loaded vinyl barriers, or using double-wall construction reduces breakout transmission. Understanding these noise generation mechanisms is essential for any air duct design project where acoustic performance is a design criterion.
Duct Lining, Silencers, and Sound Attenuation Design Strategies
Once noise sources are characterized, the air duct design engineer deploys attenuation strategies to reduce sound levels at occupied zones to the required criteria. Duct lining — applying acoustic absorptive material (typically 25–50mm fiberglass or mineral wool) to the interior surfaces of ducts — attenuates sound as it propagates through the lined section. Lined ducts provide 0.3–1.0 dB/m attenuation depending on lining thickness, duct size, and frequency, with greater effectiveness at mid and high frequencies. Lined sections of 3–6m length are commonly installed downstream of fans and at strategic points in the duct network.
Duct silencers (sound attenuators) provide higher attenuation in a shorter length by using parallel baffles of absorptive material separated by air passages. A typical rectangular silencer provides 15–35 dB attenuation across a 1–2m length, with performance varying by frequency. Silencers are specified by their insertion loss (IL) at octave band center frequencies (63 Hz to 8 kHz) and their self-generated noise rating. In air duct design, silencers are placed as close to the noise source (fan) as practical, with at least 2m of unlined duct between the fan and silencer to allow turbulent airflow from the fan to stabilize before entering the silencer passages. Other attenuation strategies include sound boots (short lined sections at diffuser connections), plenum chambers (which use the natural attenuation of a large expansion volume), and elbow attenuators (lined bends that combine direction change with sound absorption). The selection and placement of these devices must be integrated into the air duct design from the schematic phase, as they add pressure drop, occupy space, and influence duct routing.
Achieving Target NC Ratings: Balancing Acoustic Comfort and Airflow Performance
The ultimate goal of acoustic air duct design in occupied spaces is to meet the specified Noise Criteria (NC) or Room Criteria (RC) rating. NC ratings define the maximum allowable octave-band sound pressure levels in a space, with lower NC values indicating quieter environments. Typical targets range from NC 25–30 for concert halls and broadcast studios, NC 30–35 for private offices and hotel rooms, NC 35–40 for open-plan offices and classrooms, and NC 40–45 for restaurants and retail spaces. Industrial environments may accept NC 50–60 or higher.
Achieving these targets requires a systematic approach to air duct design that begins with selecting quiet equipment (fans, air handling units) and continues through duct sizing, fitting selection, lining specification, silencer placement, and terminal device selection. The design process is iterative: the engineer estimates the sound power level at the fan, calculates attenuation through lined ducts and silencers, adds regenerated noise from fittings, subtracts end reflection losses at outlets, and compares the result at the room boundary to the NC target. If the target is exceeded, the design is revised — typically by adding more attenuation (longer lined sections, larger silencers), reducing velocities (larger ducts), or selecting quieter terminal devices. The following table provides typical NC targets by space type and the corresponding air duct design velocity limits:
| Space Type | NC Target | Max Duct Velocity (m/s) | Attenuation Strategy |
|---|---|---|---|
| Concert Hall / Studio | NC 20–25 | 2.0–2.5 | Extensive lining + silencers + plenums |
| Private Office | NC 30–35 | 3.0–4.0 | Lined duct + sound boot at diffuser |
| Open-Plan Office | NC 35–40 | 4.0–5.0 | Lined duct + silencer near fan |
| Classroom | NC 30–35 | 3.0–4.0 | Lined duct + low-velocity diffusers |
| Restaurant / Retail | NC 40–45 | 5.0–6.0 | Moderate lining + velocity control |
| Industrial / Warehouse | NC 50–60 | 8.0–12.0 | Minimal — velocity control only |
Balancing acoustic comfort with airflow performance is the central challenge of air duct design in noise-sensitive environments. Larger ducts reduce velocity and noise but increase construction cost and space requirements. More silencers add attenuation but increase pressure drop and fan energy. The air duct design engineer must find the optimal balance — meeting the NC target at minimum capital and operating cost — through careful calculation, iterative refinement, and adherence to established standards such as ASHRAE and SMACNA guidelines. For corrosion-resistant industrial applications where both acoustic and chemical performance are required, PP and FRP ducting from plastic-duct.com and ventilation dampers from ppairvalve.com provide integrated solutions that address fluid dynamics, thermodynamics, and acoustic requirements within a single, engineered system.
