Accurate air dAccurate air duct pipe sizing is the foundation of efficient, quiet, and cost-effective HVAC and industrial ventilation systems.
Incorrect duct diameter leads to uneven airflow, excessive energy use, high noise levels, and premature equipment failure across residential, commercial, and industrial setups.
This guide breaks down the core principles, step-by-step calculation process, and validation steps for precise air duct pipe sizing, aligned with global industry standards.
Core Basics of Air Duct Pipe Sizing
Why Correct Duct Sizing Is Critical for HVAC Performance
Proper air duct pipe sizing directly impacts 3 core pillars of ventilation system performance, per ASHRAE industry guidelines .
Oversized ducts lead to low airflow velocity, reduced air circulation efficiency, and higher material and installation costs.
Undersized ducts create excessive static pressure, noisy operation, increased energy consumption, and failed airflow delivery to target zones.
For industrial corrosive exhaust systems, incorrect air duct pipe sizing can also reduce fume capture efficiency, risking non-compliance with workplace safety standards.
Key Factors That Impact Duct Sizing Decisions
There are 4 non-negotiable factors that must be accounted for in any air duct pipe sizing calculation.
First is the required airflow volume for each space, measured in cubic feet per minute (CFM) or cubic meters per hour (CMH).
Second is the maximum allowable air velocity, which varies by application (residential, commercial, industrial) and duct material.
Third is the total length of the duct run and the number of fittings (elbows, tees, reducers), which impact static pressure loss.

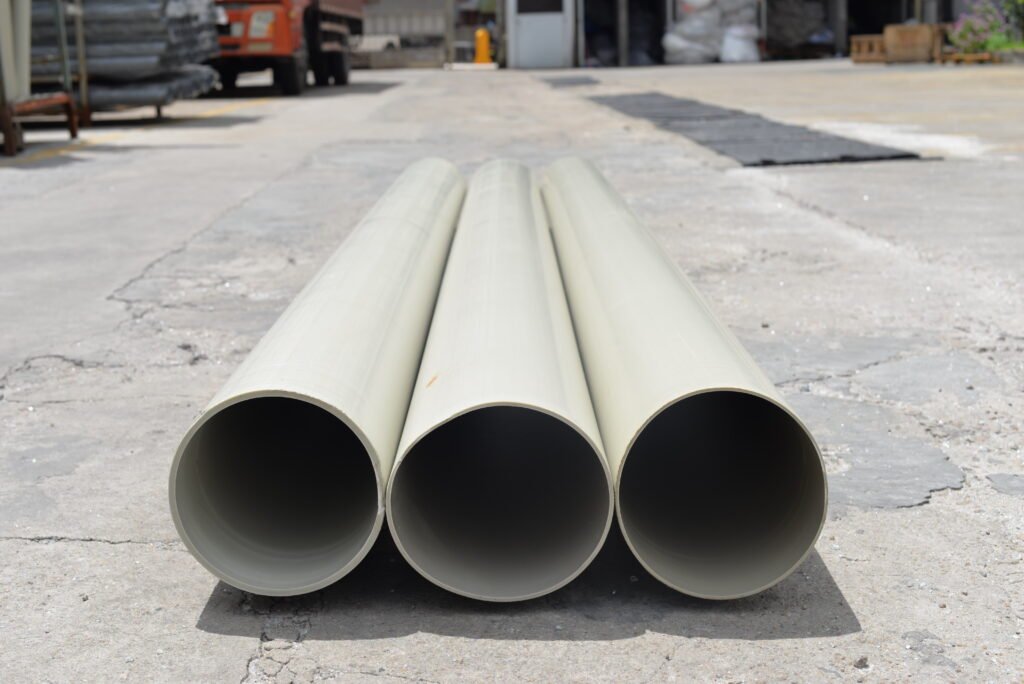

Fourth is the duct material, and smooth-walled polypropylene (PP) ducts have lower friction loss.They perform better than corrugated or galvanized metal options.
Standard Duct Diameter & Industry Dimension Overview
Global HVAC and industrial ventilation systems use standardized duct diameters to simplify manufacturing, installation, and replacement.
The table below outlines the most common standard round duct sizes, paired with their optimal airflow range at industry-recommended velocities:
表格
| Standard Duct Diameter (mm) | Optimal Airflow Range (CMH) | Recommended Application |
|---|---|---|
| 110 | 200 – 500 | Residential room ventilation |
| 200 | 800 – 1800 | Commercial office zones |
| 315 | 2000 – 4500 | Industrial workshop exhaust |
| 400 | 4000 – 7000 | Chemical plant fume extraction |
Full custom diameter and rectangular duct options are also available for non-standard industrial projects, with tailored design support for complex ventilation layouts .
Step-by-Step Process to Calculate Duct Diameter
Calculate Required Airflow for Each Room & Zone
The first step in air duct pipe sizing is to calculate the exact required airflow for each room or zone in your system.
For homes and businesses, airflow is calculated using room size, air changes per hour (ACH), and heating or cooling needs.
For industrial exhaust systems, airflow is determined by fume hood capture velocity, chemical hazard levels, and OSHA workplace air quality standards .
Sum the airflow requirements for all zones fed by a single duct run to get the total CFM/CMH for that section of ductwork.
Determine Optimal Air Velocity for Your Ductwork
Once you have your total airflow, the next step in air duct pipe sizing is to set the optimal air velocity for your application.
ASHRAE recommends 300-500 FPM (1.5-2.5 m/s) for residential ductwork, 700-900 FPM (3.5-4.5 m/s) for commercial spaces, and 1000-1800 FPM (5-9 m/s) for industrial exhaust systems.
Higher velocities are acceptable for corrosive fume exhaust, as they reduce particulate buildup and long-term corrosion risk in the duct system.
Selecting the correct velocity prevents excessive noise, friction loss, and inefficient airflow delivery.

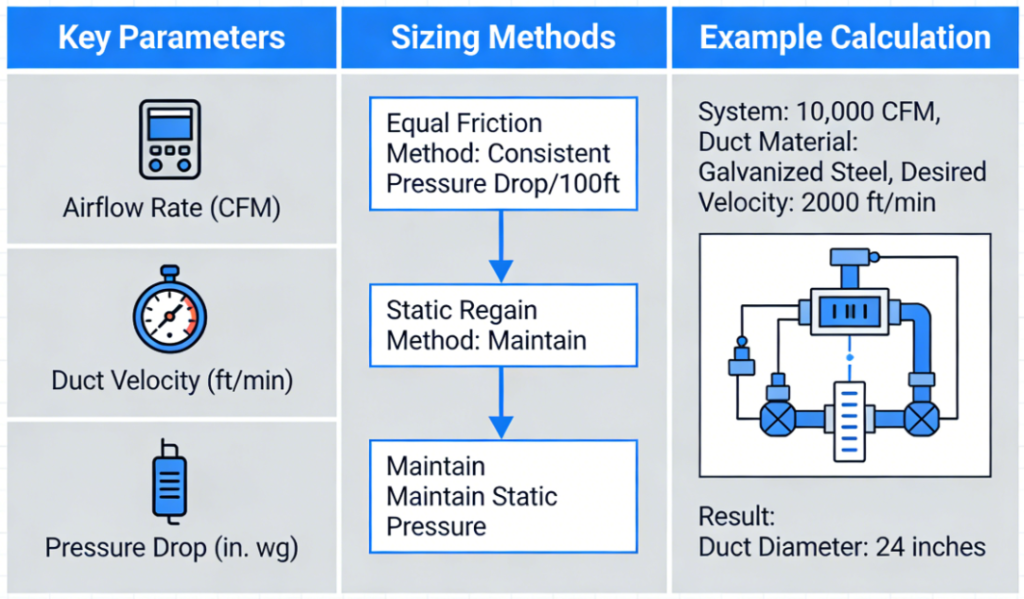

Use the Duct Sizing Formula to Get the Correct Diameter
With airflow and velocity confirmed, you can complete your air duct pipe sizing with the industry-standard round duct diameter formula.
For metric calculations (the global standard for industrial and commercial projects):
Duct Diameter (m) = √(4 × Q / (π × V × 3600))
Where Q = Airflow (CMH), V = Air Velocity (m/s), π = 3.1416.
For example, a 4000 CMH industrial exhaust duct with a target velocity of 6 m/s requires a 315mm diameter duct, which aligns with widely used standard industry sizes.
This formula delivers the exact theoretical diameter, which you will then adjust to match real-world standard duct sizes.
Post-Calculation Adjustment & Validation
Adjust Calculations to Match Standard Duct Dimensions
The final theoretical diameter from your air duct pipe sizing calculation will rarely match a standard off-the-shelf duct size.
Round your calculated diameter up to the nearest standard duct size to avoid undersizing, or down if the difference is minimal and static pressure loss is within acceptable limits.
For non-standard sizes or custom industrial layouts, use concentric reducers to create smooth transitions between different duct diameters in your system.
Always document your final selected duct sizes and the reasoning for adjustments, for compliance and future system modifications.
Account for Static Pressure Loss in Long Duct Runs
Long duct runs and multiple fittings will create static pressure loss, which must be accounted for in your air duct pipe sizing.
Each elbow, tee, reducer, and damper adds friction loss, which reduces airflow at the end of the duct run.
For runs longer than 10 meters, or systems with more than 3 fittings, increase your duct diameter by one standard size to compensate for pressure loss.
Pair your ductwork with low-resistance dampers and fittings to minimize pressure loss and maintain optimal airflow efficiency.
Post-Installation Airflow Testing & Balancing
No air duct pipe sizing process is complete without post-installation testing and balancing to validate your calculations.
Use an anemometer to measure airflow velocity and volume at each outlet and damper, confirming it matches your original design requirements.
Adjust damper positions to balance airflow across all zones, and recheck static pressure to ensure your system fan is operating within its designed range.
Document all test results for regulatory compliance, future maintenance, and system upgrades.
Accurate air duct pipe sizing is critical for the long-term performance, efficiency, and safety of any ventilation system.
By following this step-by-step calculation process, accounting for industry standards, and validating your results post-installation, you can ensure your ductwork delivers optimal airflow for decades.
