In the construction of modern global industrial infrastructure, choosing the appropriate ventilation medium is a crucial decision. This not only affects initial capital expenditure but also directly determines the operational safety and efficiency of the entire facility. For professionals specializing in exhaust gas treatment equipment , the choices typically narrow down to four main materials: PP duct (Polypropylene) , PVC (Polyvinyl Chloride), Galvanized Iron (GI), and PE (Polyethylene).
Each material exhibits unique physical and chemical properties. A mismatch between material properties and environmental requirements can lead to catastrophic system failures or skyrocketing maintenance costs. This guide provides a comprehensive technical comparison to help global procurement and engineering teams make data-driven decisions. Many global industry leaders trust our high-performance thermoplastic solutions for harsh industrial environments.https://plastic-duct.com/The precision engineering duct system provided.
Core Performance Comparison of PP, PVC, Galvanized Iron & PE Ducts
Fundamental Material Properties & Core Performance Metrics
To deeply understand the performance differences of these materials, it is essential to first examine their molecular structure and physical basis. PP duct is a semi-crystalline thermoplastic known for its excellent chemical neutrality and low density (approximately 0.90 to 0.91 g/cm³). According to…Engineering ToolBox: Research on Polymer DensityIt is one of the lightest and most structurally robust plastic options currently available for commercial applications.
In contrast, while PVC is slightly rigid at room temperature, its reliance on stabilizers and plasticizers makes it susceptible to leaching or chemical corrosion over time. Galvanized iron (GI) represents the traditional metallic standard; although it offers great structural rigidity and mechanical strength, it still suffers from unavoidable oxidation vulnerability under the zinc coating. While PE (especially high-density polyethylene, HDPE) provides excellent flexibility and impact resistance, it lacks the structural “memory” and heat resistance required for many elevated industrial exhaust applications. When comprehensively evaluating these fundamental indicators, PP ducts consistently remain the most balanced “all-rounder” in complex chemical environments.
Temperature Resistance & Environmental Adaptability Gap
Temperature is a major dividing line in material selection. Standard PP ducts are designed to maintain structural integrity under a continuous operating temperature of 95°C (203°F). However, according to…Experimental data from the International Journal of ThermophysicsPolypropylene outperforms most inexpensive plastics in thermal cycling environments.
In contrast, PVC begins to soften significantly and lose its rated pressure once the temperature exceeds 60°C (140°F), making it unsuitable for transporting high-temperature chemical or industrial steam. While galvanized iron can technically withstand higher temperatures (typically exceeding 200°C), its zinc coating peels or oxidizes rapidly in hot, humid environments. PE ducts are at the lower end of the thermal spectrum, typically with an upper limit of 60°C, which often limits their applications to underground drainage rather than high-temperature overhead ventilation.
Corrosion Resistance & Operational Stability Comparison
Corrosion is the “silent killer” of industrial ventilation systems. In this category, PP ducts are the undisputed champion. Because it is a non-polar hydrocarbon polymer, it is virtually unaffected by various acids, alkalis, and organic solvents. (Reference)NACE International Research Report on Material CorrosionThe loss rate of non-metallic materials when treating acidic waste gas is much lower than that of coated metals.
While PVC offers good resistance to many acids, it is susceptible to corrosion from certain polar solvents and esters. Galvanized iron performs well in clean-air HVAC environments, but rapidly deteriorates upon exposure to acidic fumes or high humidity; its zinc coating is chemically consumed, leading to “white rust” and ultimately structural perforation. PE has similar chemical resistance to PP, but is more prone to environmental stress cracking upon contact with certain industrial surfactants. For exhaust gas treatment equipment handling volatile chemical mixtures , high-grade PP systems offer unparalleled operational stability.
Cost, Service Life & Total Ownership Cost Analysis
Upfront Material & Installation Cost Contrast
When considering costs, it’s crucial to distinguish between the price of raw materials and “installation costs.” Galvanized iron typically boasts the lowest raw material cost per foot, but its immense weight necessitates heavy-duty support structures and time-consuming mechanical connections, significantly increasing installation expenses. PVC is inexpensive and offers simple solvent-bonded connections, but welding remains essential for large industrial pipe diameters.
PP duct systems are priced in the mid-to-high range, primarily due to the specialized equipment and skilled labor required for hot air welding or butt welding. However, according to…Installation efficiency study by MCAA (American Mechanical Contractors Association)Since PP is much lighter than GI (typically only 1/8 the weight), the savings in structural reinforcement and installation time often offset the material premium. PE is generally the most economical plastic, but due to its flexibility, it usually requires denser bracing, which increases overall installation labor costs.
Service Life & Durability Difference Across 4 Duct Materials
The lifespan of a ventilation system directly reflects its environmental adaptability. In standard laboratories or chemical treatment plants, PP duct systems are typically engineered for a 50-year lifespan. Because PVC materials become brittle under UV exposure or chemical leaching, the reliability of such systems usually begins to decline after 20 to 30 years.
Galvanized iron may have a lifespan of only 5 to 10 years in corrosive environments, after which it will require large-scale replacement due to corrosion. PE systems have strong resistance to physical impact and a lifespan of over 40 years, but due to limitations in thermal performance, their application scenarios are narrower than PP. For the global market, investing in PP ductwork is essentially a “one-time installation, worry-free for life” strategy.
Long-Term Maintenance & Total Cost of Ownership (TCO) Comparison
Total cost of ownership (TCO) is key to demonstrating the economic superiority of PP ducts . Metal GI systems require frequent rust checks, periodic repainting, and eventual replacement of corroded sections, costs that can exceed the initial installation price within ten years.
PP ducts , with their integral welded joints and inherent corrosion resistance, require virtually no structural maintenance. The smooth inner wall also prevents the accumulation of chemical condensates or particles, reducing the frequency of internal cleaning.Total Cost of Ownership Comprehensive Analysis ModelAccording to assessments, over a 25-year period, the total cost of ownership (TCO) of PP systems is typically 40% to 60% lower than that of galvanized iron.
| Material | Initial Cost | Installation Ease | Chemical Resistance | Max Temp | Life Span |
| PP Duct | Medium-High | High (Lightweight) | Excellent | 95°C | 50+ Years |
| PVC Duct | Low-Medium | Medium | Good | 60°C | 20-30 Years |
| GI Duct | Low | Low (Heavy) | Poor (Corrodes) | >200°C | 5-10 Years* |
| PE Duct | Low | Medium | Very Good | 60°C | 40+ Years |
Application Scenarios & Optimal Material Selection Guide
Industry-Specific Best Fit Applications for Each Duct Type

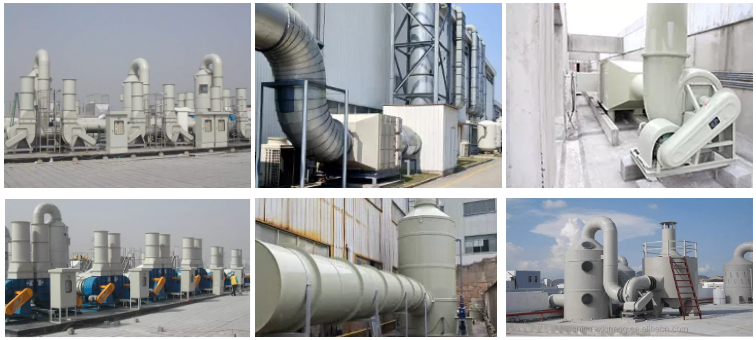

Choosing the right material depends on “mission fit.” PP ducts are the gold standard for semiconductor wafer fabs, heavy chemical synthesis facilities, and large-scale industrial wastewater treatment plants (handling high-temperature acidic vapors). PVC is commonly found in residential HVAC, swimming pool ventilation, and laboratories in room-temperature environments. Galvanized iron remains the preferred choice for commercial office buildings with high fire safety requirements and no corrosion concerns. PE ducts are ideal for underground hazardous waste ventilation and mining applications.
Regulatory Compliance & Application Limitations of Each Material
conform toFM Global 4910 (Fire Resistance Testing Standard for Cleanroom Materials)The choice of materials is often determined by UL 94 standards. Standard PP and PE are flammable, so flame-retardant modified versions (PPs) must be used in indoor building applications. Although PVC is naturally flame-retardant, the toxic hydrogen chloride gas released during combustion poses a significant legal liability in some jurisdictions. While galvanized iron is non-combustible, it may fail to meet clean air standards due to peeling in corrosive environments.
Quick Decision Guide: Which Duct Material Fits Your Project Best
If your project involves temperatures above 60°C and high concentrations of corrosive fumes, PP ducts are the only long-term viable option. If the budget is extremely limited and the environment is low-temperature and low-corrosion, PVC is acceptable. For heavy industrial machinery environments with no chemical exposure, galvanized iron is a reliable and cost-effective solution. To explore specialized solutions tailored to these needs, please visit [website address].https://plastic-duct.com/Our team of experts will find the perfect match for your facility.
Final Thoughts on PP Duct Selection & Implementation
In the global industrial waste gas treatment field, the choice of materials directly affects the success or failure of a project. PP ducts , with their superior performance in extreme chemical resistance, thermal stability, and long-term economic efficiency, have become the preferred choice for engineers worldwide treating acidic and alkaline waste gases. By comparing PVC, GI, and PE, we can clearly see the significant advantage of PP in terms of total life-cycle cost.
If you would like to learn more about how to optimize duct layout for specific chemical compositions, or if you need technical charts of the thermal expansion rates of different duct materials , we can provide you with more in-depth consulting services.
