PP FRP Ducting: What It Is & How It Works for Corrosive Air Handling

In industrial ventilation and air pollution control, the ducting system that transports corrosive exhaust gases from source to treatment equipment is often the most overlooked component — yet it is frequently the first to fail. When a duct corrodes, cracks, or leaks, the entire waste gas treatment train is compromised: scrubbers lose their feed, monitoring equipment receives inconsistent data, and fugitive emissions escape into the workplace or atmosphere. For facilities that handle acid fumes, alkali vapors, chlorinated solvents, or any combination of aggressive chemical media, the choice of ducting material is not a routine procurement decision — it is a critical engineering determination that directly affects operational safety, environmental compliance, and long-term capital expenditure.

Among the available options, PP FRP ducting has steadily risen to prominence as the preferred solution for corrosive air handling across industries ranging from semiconductor fabrication and chemical processing to metal finishing and waste incineration (citation:8). This engineered composite material combines the chemical inertness of polypropylene with the structural strength of fiberglass-reinforced plastic, delivering a ductwork system that resists corrosion, eliminates leak-prone joints, and achieves a service life measured in decades rather than years. This article provides a comprehensive overview of PP FRP ducting — from raw material science and fabrication methods to chemical resistance profiles, performance limits, installation best practices, and lifecycle maintenance — giving decision-makers the technical foundation they need to specify the right system for their corrosive air handling requirements.

What Is PP FRP Ducting?

PP and FRP: Understanding the Core Materials

To appreciate the performance advantages of PP FRP ducting, it is necessary to understand the two distinct material systems that form its structure. The first component is polypropylene (PP), a semi-crystalline thermoplastic polymer belonging to the polyolefin family. Polypropylene is available in homopolymer and copolymer grades, both widely used in industrial ducting applications (citation:1). Its defining strength is broad-spectrum chemical inertness: the material resists virtually all inorganic acids (sulfuric, hydrochloric, nitric, and hydrofluoric), strong alkalis such as sodium hydroxide, and a wide range of organic solvents (citation:7)(citation:8). This resistance is inherent to the polymer’s molecular structure — not a surface coating that can wear away. In PP FRP ducting, polypropylene serves as the inner liner in direct contact with the corrosive gas stream. However, polypropylene alone has mechanical limitations: relatively low tensile strength, softening at elevated temperatures (around 100°C), and susceptibility to deformation under sustained load.

These limitations are precisely what the second component — fiberglass-reinforced plastic (FRP) — is designed to overcome. FRP is a thermoset composite created by embedding glass fiber reinforcement within a cured resin matrix, typically vinyl ester or epoxy. The glass fibers provide exceptional tensile strength and stiffness, while the resin matrix distributes applied loads (citation:12). When the FRP shell is fabricated around the PP liner through filament winding or hand lay-up, the result is a PP FRP ducting system that inherits the chemical resistance of polypropylene and the structural integrity of fiberglass. The PP liner prevents chemical attack from the inside, while the FRP shell prevents mechanical failure from the outside. For detailed material data sheets and chemical resistance charts, comprehensive resources are available at https://plastic-duct.com/.

How PP FRP Ductwork Is Manufactured

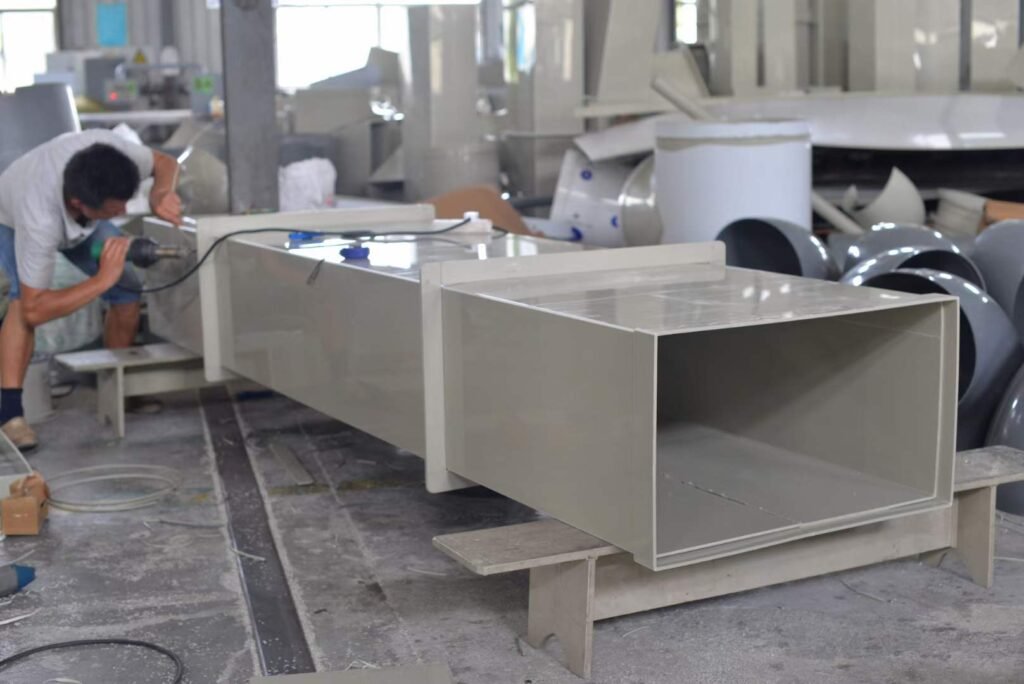

The manufacturing of PP FRP ducting is a multi-stage process that demands precision at every step. It begins with the polypropylene liner: sheets of extruded PP, typically 3mm to 8mm thick, are cut and formed into cylindrical sections using CNC-controlled rolling equipment (citation:3). Longitudinal seams are joined through hot-air fusion welding, where heated air melts the polypropylene at the seam interface to create a homogeneous, monolithic bond as chemically resistant as the parent material (citation:4). End flanges, branch connections, and transitions are similarly fabricated and fusion-welded to the PP FRP ducting liner assembly.

Once the PP liner is complete, it becomes the mandrel around which the FRP structural shell is built. In filament winding — the most common method for cylindrical PP FRP ducting sections — continuous glass fiber rovings pass through a resin bath and are wound around the rotating PP liner at calculated angles (citation:12). The winding angle, fiber tension, and resin content are computer-controlled to achieve the specified wall thickness and strength. For complex geometries such as elbows and tees, hand lay-up techniques are used, where layers of glass fiber mat are manually applied and saturated with catalyzed resin. After curing — either at ambient temperature or in a controlled oven — PP FRP ducting sections are trimmed, drilled for support attachments, and inspected through visual examination, dimensional verification, and pressure testing. The process is governed by standards such as ASTM D2996 for filament-wound composite pipe, ensuring consistent quality.

Key Specifications and Available Sizes

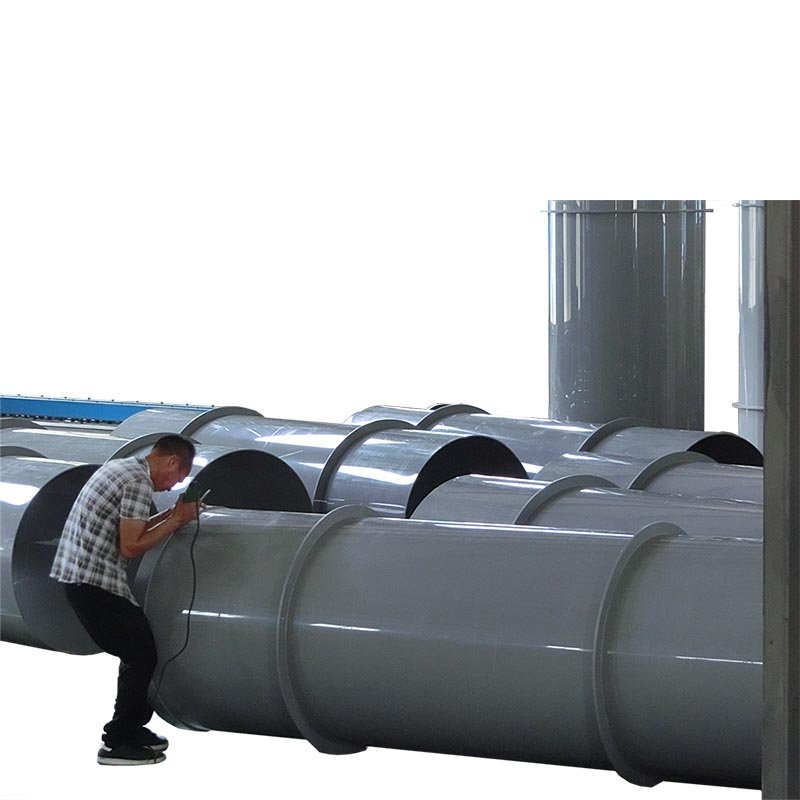

PP FRP ducting is manufactured in a wide range of sizes to accommodate diverse industrial requirements. Standard circular diameters range from 100mm (4 inches) to 2000mm (80 inches), with custom diameters up to 3000mm available for specialized applications (citation:5). The PP liner thickness typically falls between 3mm and 8mm, selected based on chemical severity, while the FRP shell ranges from 3mm for small-diameter systems to 15mm or more for large PP FRP ducting runs under significant pressure. Standard section lengths are 1.5m to 6m, with longer sections available on request.

Beyond circular cross-sections, rectangular and custom-shaped PP FRP ducting can be fabricated for installations constrained by clearance requirements. Accessories such as elbows (15°–90°), tees, reducers, expansion joints, access doors, and sight glasses are available as standard or custom-engineered components (citation:5). For a complete catalog of sizes and fabrication capabilities, manufacturers such as https://plastic-duct.com/ provide detailed engineering specifications and selection guides.

How PP FRP Ducting Works for Corrosive Air Handling

Chemical Resistance: Why PP FRP Outperforms in Corrosive Environments

The primary reason PP FRP ducting has become the material of choice for corrosive air handling is its exceptional chemical resistance across a wide spectrum of aggressive media. The polypropylene liner resists virtually all inorganic acids — including sulfuric acid up to 98%, hydrochloric acid, nitric acid up to 50%, and hydrofluoric acid — as well as strong alkalis and organic solvents (citation:7)(citation:8). This inertness is an intrinsic property of the polymer chain that does not diminish over time. In contrast, carbon steel corrodes rapidly in any acidic atmosphere, stainless steel is susceptible to pitting and stress corrosion cracking in chloride-rich environments, and even high-nickel alloys like Hastelloy carry costs five to ten times higher than equivalent PP FRP ducting.

PP FRP ducting is the only material among these options that delivers consistently excellent resistance across the full range of corrosive media commonly encountered in industrial waste gas handling (citation:8). Research compiled by AMPP (formerly NACE International) confirms that thermoplastic-lined composite systems outperform metallic alternatives by orders of magnitude in service life retention in acid-gas and chloride-rich environments.

Common Applications Across Industries

PP FRP ducting serves as the backbone of corrosive air handling systems across a diverse range of industrial sectors. In chemical and pharmaceutical manufacturing, it conveys fumes from reactors, distillation columns, and storage tanks to centralized scrubber systems, handling complex mixtures of acid vapors and organic solvents with unpredictable upset conditions. In the semiconductor and electronics industry, where aggressive etching gases such as HCl, HF, Cl₂, and NF₃ are used, the absolute inertness of PP FRP ducting is non-negotiable — even trace duct corrosion could contaminate ultra-clean production environments. Metal finishing and electroplating operations use PP FRP ducting to capture chromic acid mist, cyanide fumes, and mixed acid vapors that corrode stainless steel within months.

Waste-to-energy and incineration plants rely on PP FRP ducting for flue gas conveyance upstream of scrubbing systems, where elevated temperatures, abrasive fly ash, and aggressive acid gases create one of the most hostile environments in industrial air handling. In pulp and paper manufacturing, PP FRP handles chlorine dioxide and bleaching chemical fumes that rapidly attack stainless steel. Battery manufacturing and recycling facilities, generating fluoride and acid aerosols during electrode processing, have also adopted PP FRP ducting as a standard exhaust system material. Across all sectors, the system is custom-engineered: duct diameters, wall thicknesses, support spans, and resin formulations are calculated for each application. For industry-specific engineering support, specialized manufacturers such as https://plastic-duct.com/ offer detailed case studies and technical consultation.

Temperature, Pressure, and Airflow Performance Limits

While PP FRP ducting offers exceptional chemical resistance, engineers must understand its mechanical and thermal boundaries. The continuous operating temperature limit for standard PP FRP ducting is typically 90°C, with intermittent spikes up to 100°C accommodated through design margins (citation:4). This range covers most industrial waste gas applications, including exhaust from wet scrubbers, chemical process vents, and fume extraction systems. For higher-temperature applications such as hot flue gas upstream of a quench tower, PP FRP ducting is installed downstream of the cooling stage.

Pressure performance is governed by the FRP shell, with typical ratings from -50 mbar to +100 mbar for standard PP FRP ducting systems and higher ratings achievable through increased shell thickness (citation:5). Most fume extraction systems operate within this range under slight negative pressure maintained by the system fan. Airflow velocity is typically designed between 10 m/s and 20 m/s, balancing transport velocity against frictional pressure drop. For abrasive gas streams, lower velocities and thicker PP liners may be specified. The smooth polypropylene interior surface of PP FRP ducting (roughness approximately 0.007mm) delivers favorable hydraulic characteristics compared to corroded metal ducts, reducing friction losses and fan energy consumption over the system’s life. These performance parameters define the operating envelope within which PP FRP ducting delivers its full advantages and must be clearly specified during design.

Choosing, Installing, and Maintaining PP FRP Duct Systems

PP FRP vs. PVC, HDPE, and Stainless Steel Ducting: A Comparison

Selecting the optimal ducting material requires systematic comparison across multiple performance dimensions. PP FRP ducting offers the broadest chemical resistance, highest mechanical strength among non-metallic options, longest service life, and fusion-welded leak-tight joints. Its limitations are a moderate temperature ceiling (90°C) and higher initial cost than PVC or HDPE. PVC is inexpensive and easy to install with solvent cement, but has narrower chemical resistance (poor against chlorinated solvents), a lower temperature limit (60°C), and becomes brittle over time (citation:2). HDPE offers good chemical resistance and flexibility for buried applications but lacks structural rigidity, has limited temperature tolerance (80°C), and is prone to creep under sustained vacuum in large diameters. Stainless steel provides excellent strength and high-temperature capability but is vulnerable to chloride-induced pitting, requires leak-prone gasketed flanges, and carries higher lifecycle costs.

PP FRP ducting occupies a unique position: it combines the chemical inertness of thermoplastics with structural performance approaching metals, while delivering the lowest lifecycle cost in corrosive service.

Installation Best Practices and Jointing Methods

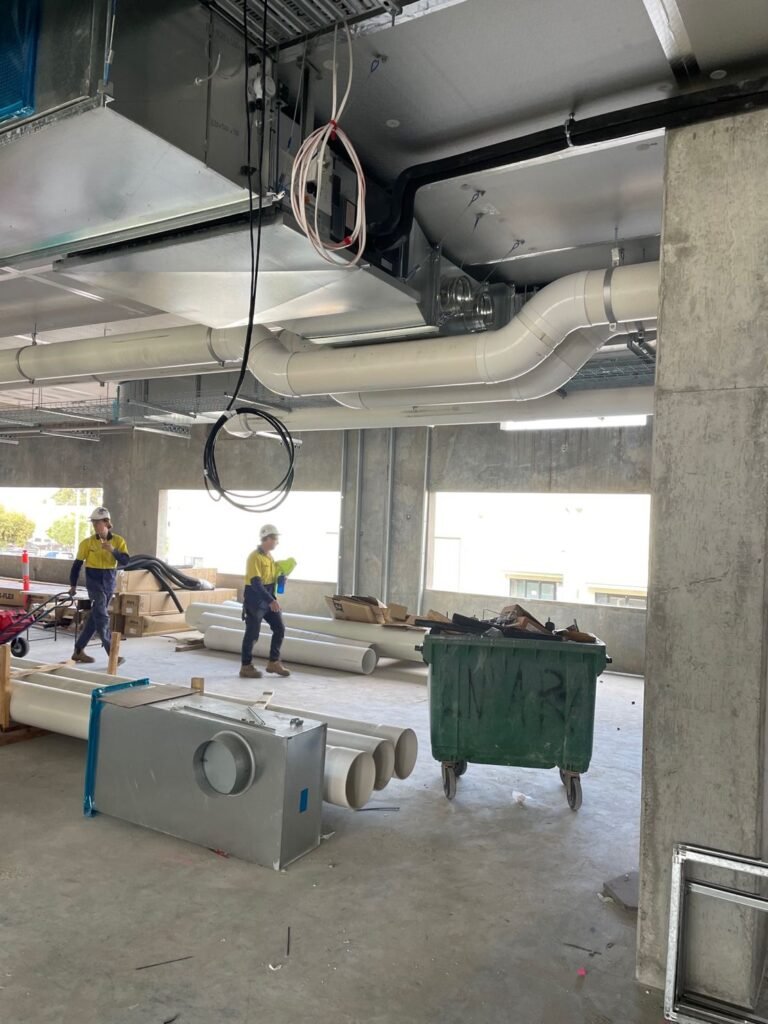

Installation quality directly determines whether a PP FRP ducting system achieves its design service life and leak-tight integrity. Sections should be stored on flat surfaces, protected from prolonged sunlight, and supported at recommended intervals to prevent ovalization (citation:3). During erection, PP FRP ducting sections must be aligned carefully before permanent joints are made. The primary jointing method is hot-air fusion welding of the polypropylene liner, followed by FRP overlay reinforcement. A calibrated hot-air gun heats the PP surfaces to melting point while a polypropylene filler rod is fed into the weld pool, creating a homogeneous bond as strong and chemically resistant as the parent material (citation:4). After the PP weld is inspected, additional glass fiber and resin are applied over the joint to restore structural continuity.

This two-stage approach — fusion welding for chemical integrity, FRP overlay for structural integrity — eliminates the fugitive emission pathways that plague gasketed metal systems. Support design for PP FRP ducting is equally critical: saddle-type supports at 2m to 4m intervals distribute loads evenly, preventing point-loading stress (citation:5). Expansion loops or flexible connectors accommodate thermal movement in systems with significant temperature swings. All penetrations for instruments or access doors must be sealed using the same welding standards as primary construction. Comprehensive installation guides aligned with ISO 9001 quality management systems are available from manufacturers at https://plastic-duct.com/.

Maintenance, Inspection, and Service Life

One of the most compelling advantages of PP FRP ducting is its remarkably low maintenance requirement, translating directly into reduced operating costs and sustained regulatory compliance. Unlike metal ducting, which demands regular repainting, gasket replacement, and patch welding, a properly installed PP FRP ducting system requires only periodic inspection. The recommended protocol includes quarterly external visual checks for physical damage, semi-annual verification of support integrity, and annual internal inspections to confirm liner condition and welded joint integrity during scheduled shutdowns.

In practice, internal inspections of PP FRP ducting rarely reveal significant degradation, as the polypropylene liner is inherently resistant to its design chemical environment. Any post-installation modifications must use the same fusion welding and FRP overlay procedures as original construction. A maintained inspection log provides the verifiable record of system stewardship that environmental regulators require. The expected service life of a properly specified PP FRP ducting system is 25 to 30 years or more, compared to 10 to 15 years for stainless steel in the same service. This extended lifespan, combined with near-zero maintenance costs, drives the dramatic lifecycle cost advantage that makes PP FRP ducting not merely a technically superior solution, but a strategically sound financial investment for any facility committed to long-term reliable corrosive air handling.
